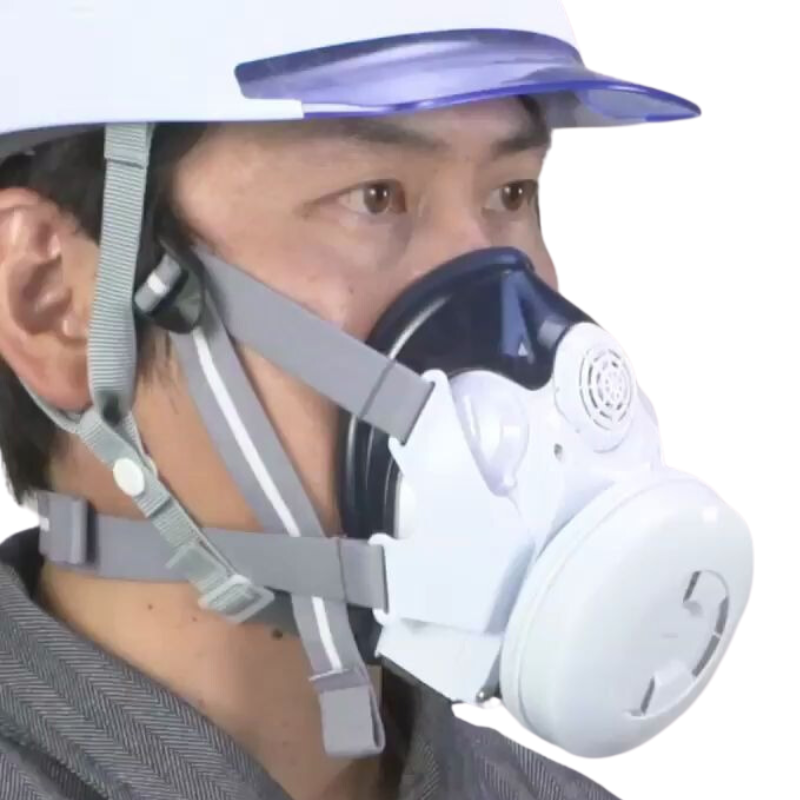

SHIGEMATSU Half Face Powered Air Purifying Respirator (PAPR) SY11V3

Asbestos Handling Work
Healthcare
Sander work
Grinder work
Maintenance
SY11 Series specs ASIONGS
  • Filter: V3
  • Fan unit: MU-11
  • Battery: BA L2SUK ordinary (~6 hours runtime)
  • Battery charger: CH L2HAA
Brand:Shigematsu
Interested in this product? Request for quotation below!
More product details of SHIGEMATSU Half Face Powered Air Purifying Respirator (PAPR) SY11V3

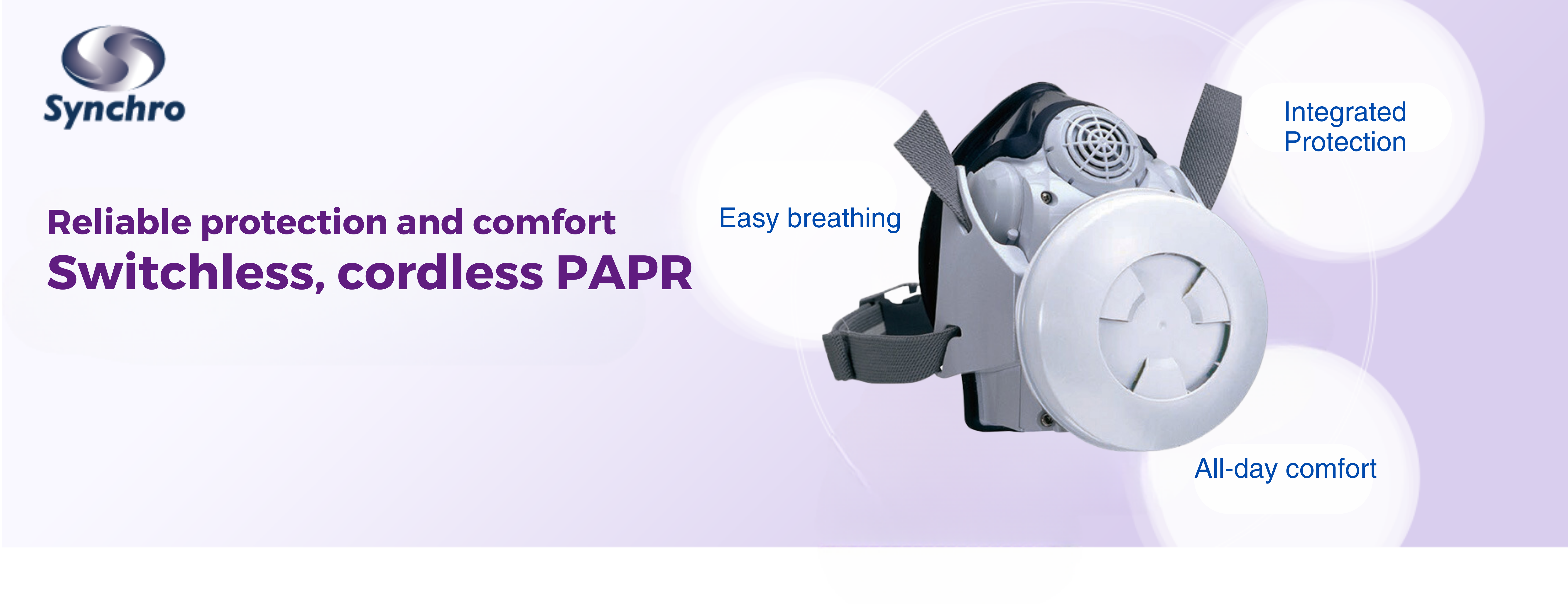

SY11 PAPR (3).png Easy Breathing
  • Breath Responsive PAPR provides clean air filtered by a fan that starts as soon as the wearer breathes
  • Fan motor turns off 5 seconds after doffing. Cordless.
Integrated Protection
  • Decreases the likelihood of infection transmission to the wearer due to constant flowing air
  • The pressure inside the facepiece is kept positive to provide higher levels of protection and prevent air leaks
  • 4-Point Head Harness: it gives the user more stability and firm fit.
All-day Comfort
  • Constant flowing air from the fan provides easier breathing to wearers.
Set comes with V3 Filter (99.97% Filtration Rate), Battery, and Charger. This PAPR is worn as is and is not attached to any cords. SHIGEMATSU PAPR (1).png

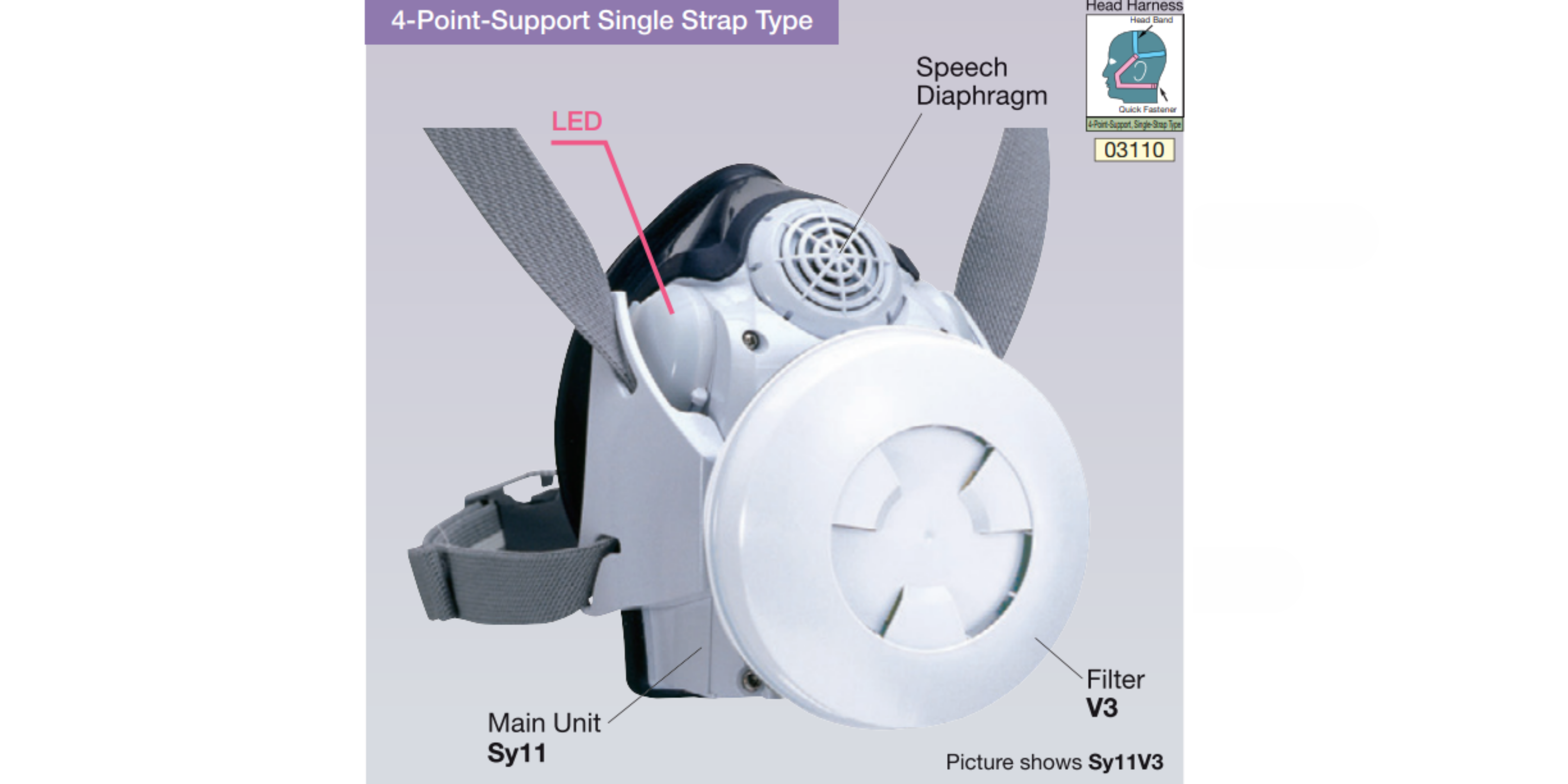

Speaking diaphragm

SY11 PAPR (4).png Designed to help provide easier communication while working.

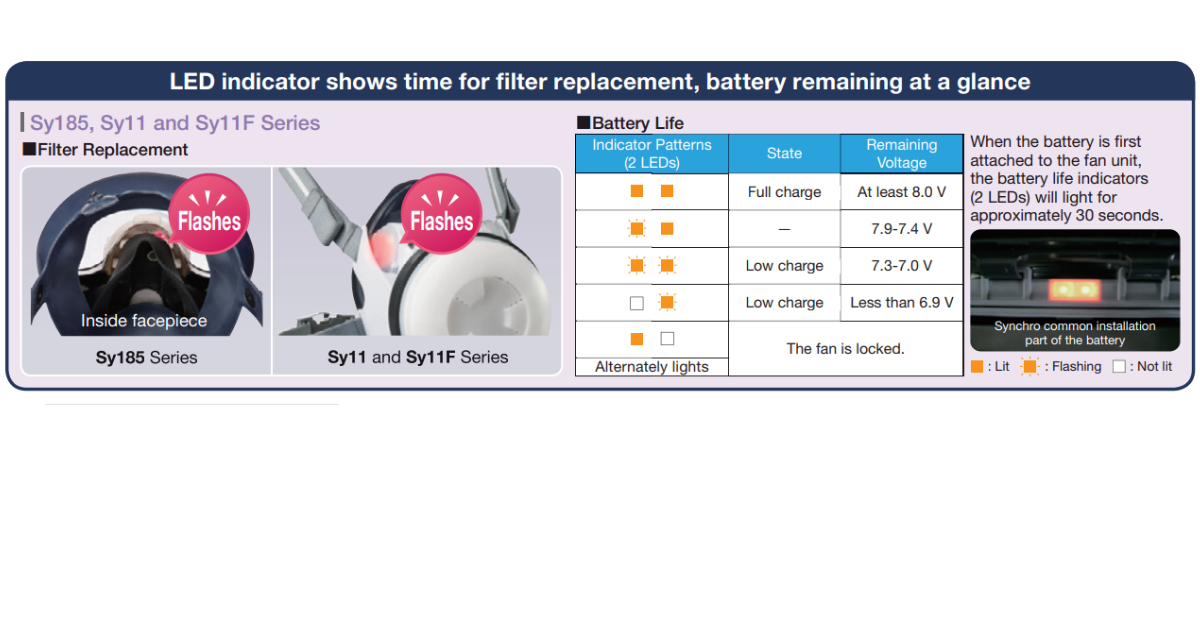

LED Indicator

SHIGEMATSU INFOGRAPH (4).png More specifications
  • Conformable Standards: JIS T 8154
  • Approval No.: Japanese Government Standards TP10
  • Ingress Protection (IP Rating): ip55 (IEC 60529:2001)
  • Facepiece Type: Half facepiece
  • Component Type: Direct-Mounting Type, PAPR consists of an electric fan, filter, and facepiece. The air purified by the particle filter is supplied to the facepiece by the electric fan.
  • Switch Type: Switchless and cordless, after donning the mask, the fan unit starts operating automatically when the user breathes. When the mask is removed, the power turns off in about 5 seconds.
  • Facepiece Material: Silicon
  • Harness Type: 4-Point-Support Single Strap Type
  • Weight:
PAPR unit: ~380g Compatible filter: V3, ~32g Compatible Battery packs: BA-L2SUK, ~95g / BA-L2H (Long life Type), ~100g Filter Specifications
  • Model: V3
  • Filter efficiency rate: ~99.97%
  • Inhalation Resistance rate [Pa]: ~160 at 40L/min air flow
  • Exhalation Resistance rate [PA]: ~160 at 40L/min air flow
